Home » Standard Friction Hinges » ZE-375 Friction Hinge Series

ZE-375 Friction Hinge Series

Torque Range available: 10 inch-pound to 120 inch-pounds depending on specific model.
Typical Applications Include: Medical device applications LCD displays, support arms, pivots, headrests, safety guards, lids, covers, and more…
Zinc Housing with bearings for shaft.**
Many configurations available.* Left, right and center mounting options as well as One-Way torque option (specific model). *

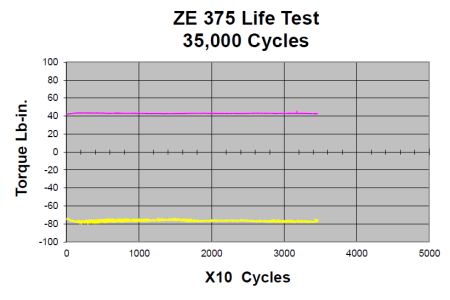

> Click graph to view as a PDF

*Balanced Torque = Symmetric / Same torque in both directions of rotation
Un-Balanced Torque = Asymmetric / Different torque from one direction to the other.
(Often used to reduce a user’s efforts when lifting or positioning against gravity or creating an ergonomic feel.)

**Additional Corrosion Protection is Available – contact us for details on specific models.
Nickel Plating of Friction bands • Stainless Steel shafts • Black E-Coat select housings • Black Powder coat entire hinge

ZE 375 Friction Hinge Models:

Click to view details, download 2D drawings and 3D models.

> Click Here to Contact Us About Your Hinge Needs

TorqMaster designs and manufacturers friction, torsion, and damping hinges for a variety of applications. All hinges are made in the U.S.A. by us and shipped worldwide. We offer stock, semi-custom, and full custom designs.
